Features

Explore HypaValley capabilities and learn how to get started.

Algorithm: Block Builder

Quick definitions and the fields you configure for every block type.

Data
  • Data: Ticker — symbol (AAPL, IBIT, etc.), timeframe (1s/1m/5m/1h/1d), price value, price timing. Feeds candles to indicators/conditions.

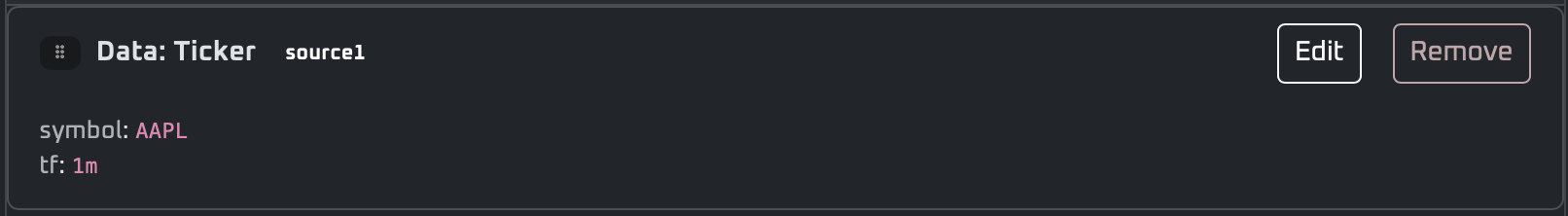

Data: Ticker block
Indicators - the length unit depends on the Data: Ticker setting
  • SMA — fields: length, source (open/high/low/close). Outputs simple moving average.
  • EMA — fields: length, source. Outputs exponential moving average.
  • RSI — fields: length, source. Outputs 0–100 oscillator (overbought/oversold).

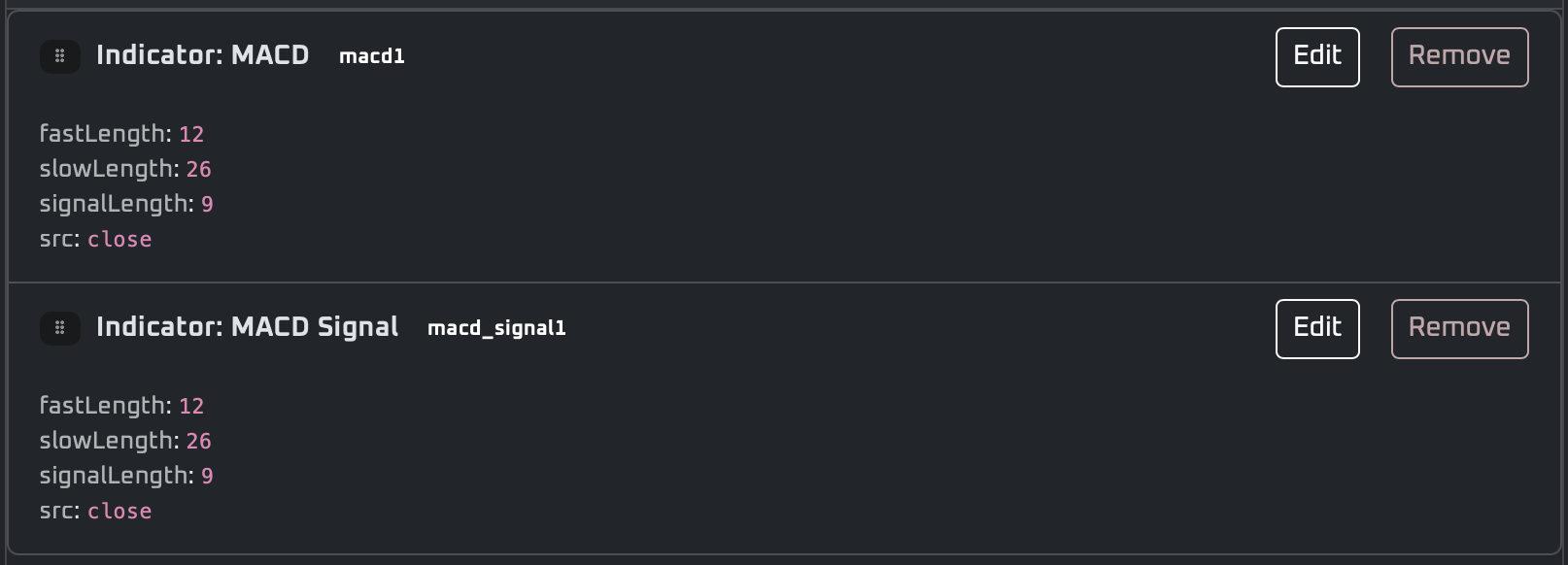

  • MACD — line/signal/histogram blocks with fast/slow/signal lengths for trend + momentum.
  • Stochastic — fast/slow %K/%D blocks for overbought/oversold signals.
  • Kalman Filter — adaptive smoothing filter for noisy price series.

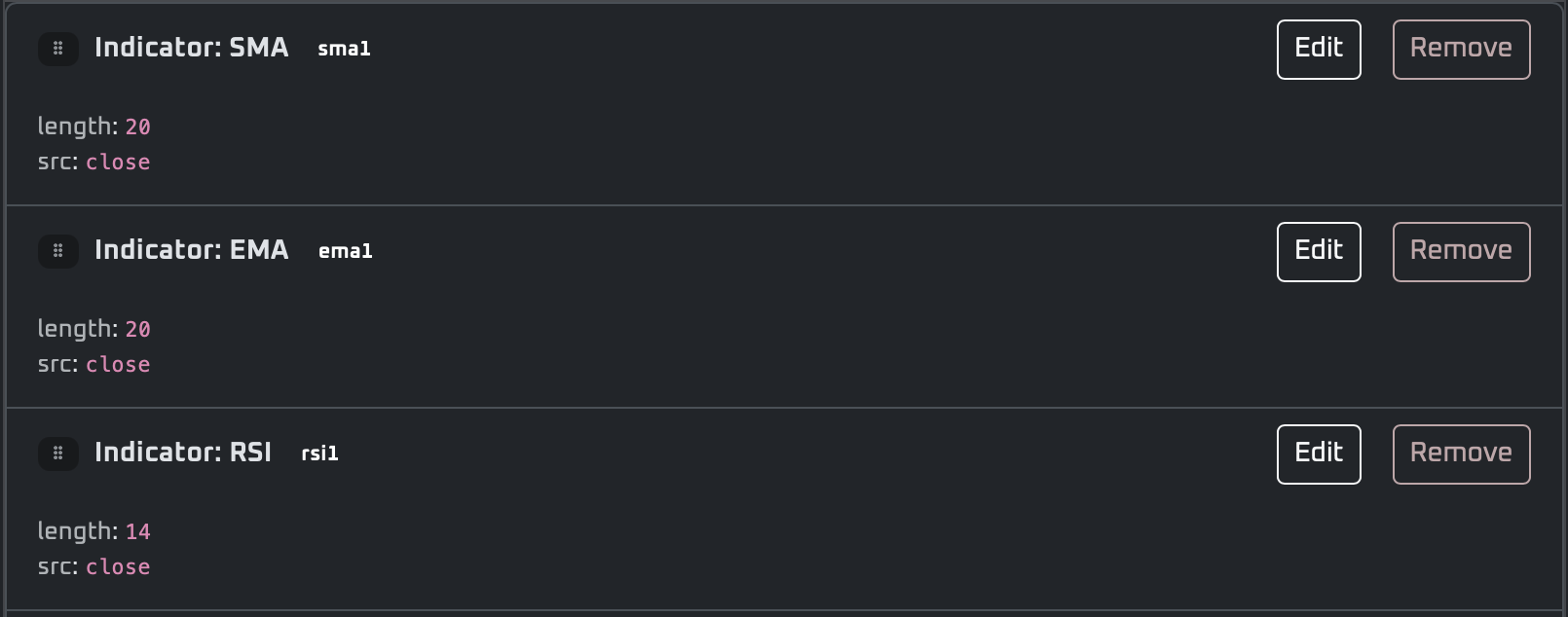

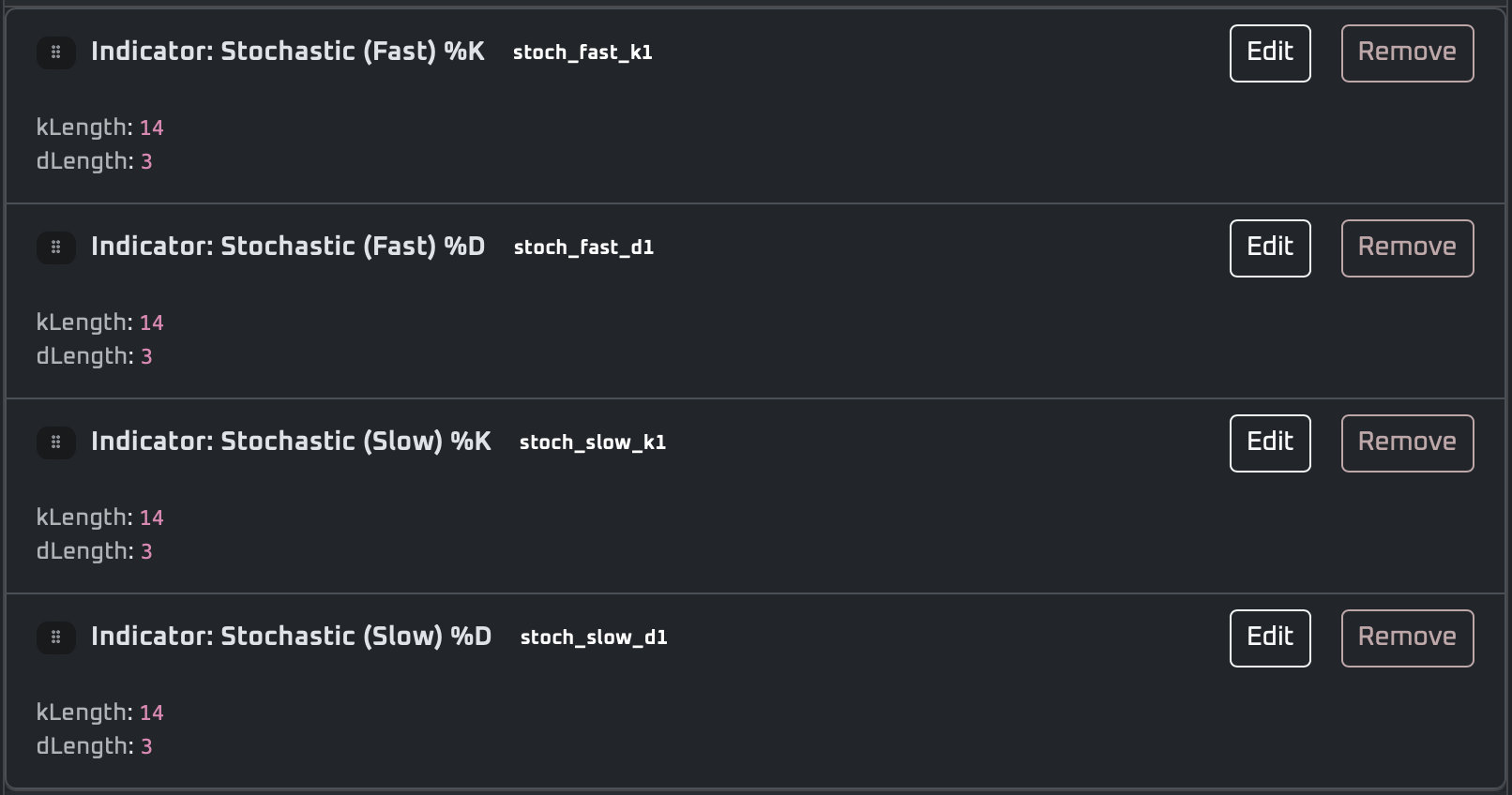

SMA, EMA, RSI indicators MACD indicator Stochastic indicator
Conditions
  • Cross — detects series A crossing series B (e.g., SMA20 above SMA50) on the bar it happens.

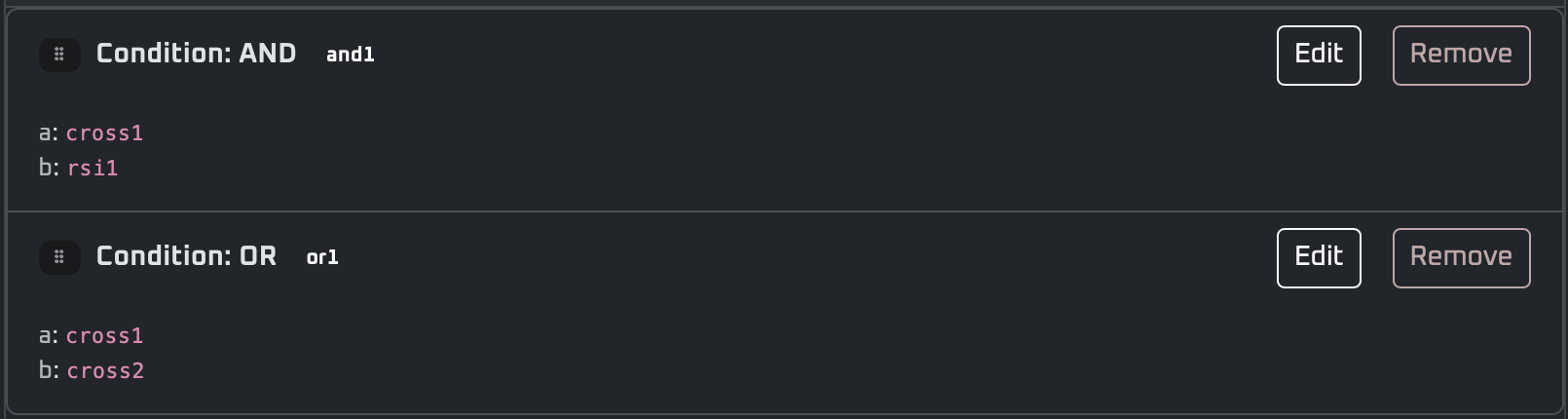

  • AND / OR — combine multiple conditions; AND requires all true, OR requires any true.
  • Comparisons — greater/less than checks vs values or indicators (e.g., RSI < 30, price > SMA50).

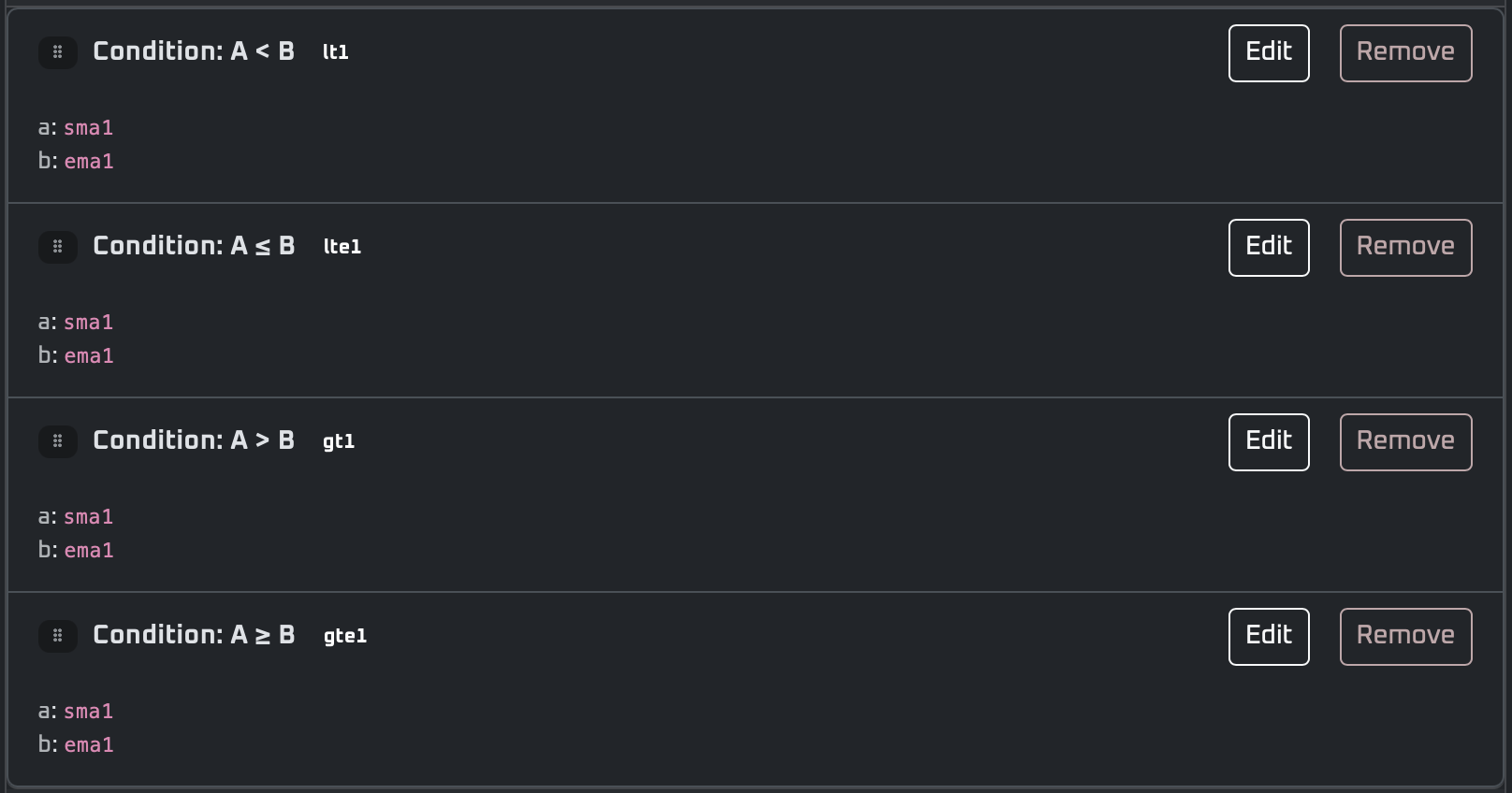

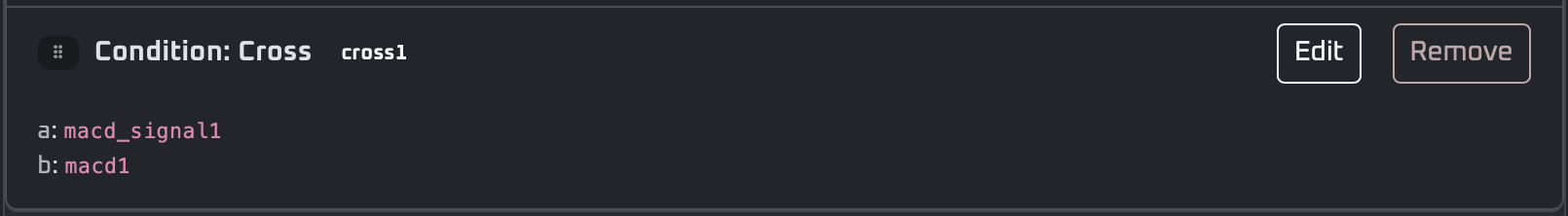

Condition cross Condition AND Condition indicator A vs B
Actions

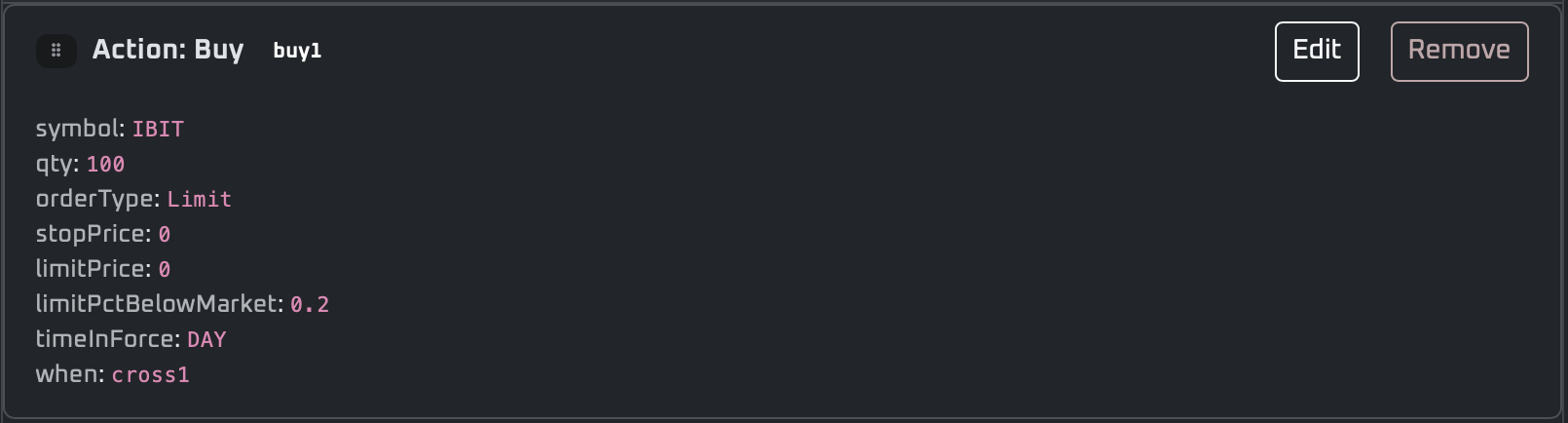

  • Buy / Sell — size in shares, cash $, or % equity; symbol defaults to data ticker.
  • Order type — Market, Limit, Stop, Stop-Limit.
  • Limit — set a limit price or use % below market (buy) / % above last buy (sell).
  • Bracket / Trailing Stop (Buy/Sell) — define exits or trailing protection in one action.
  • Wait for Fill (checkbox) — pause execution until the action fills or times out.
  • Time-in-force — DAY, GTC, IOC, FOK (depending on Alpaca mode/support).

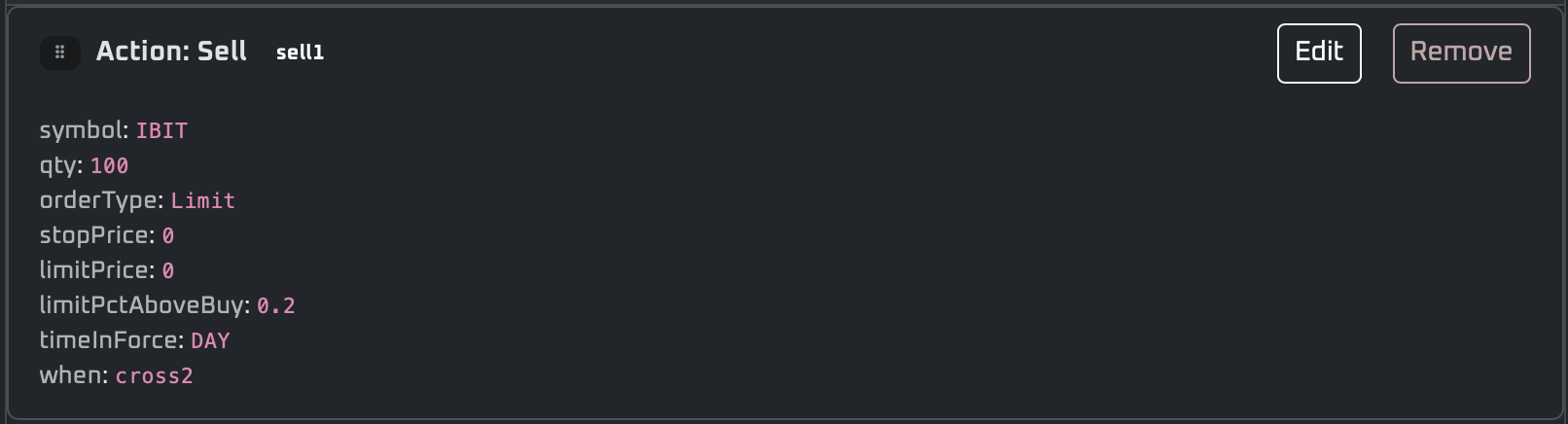

Action buy Action sell
Utility

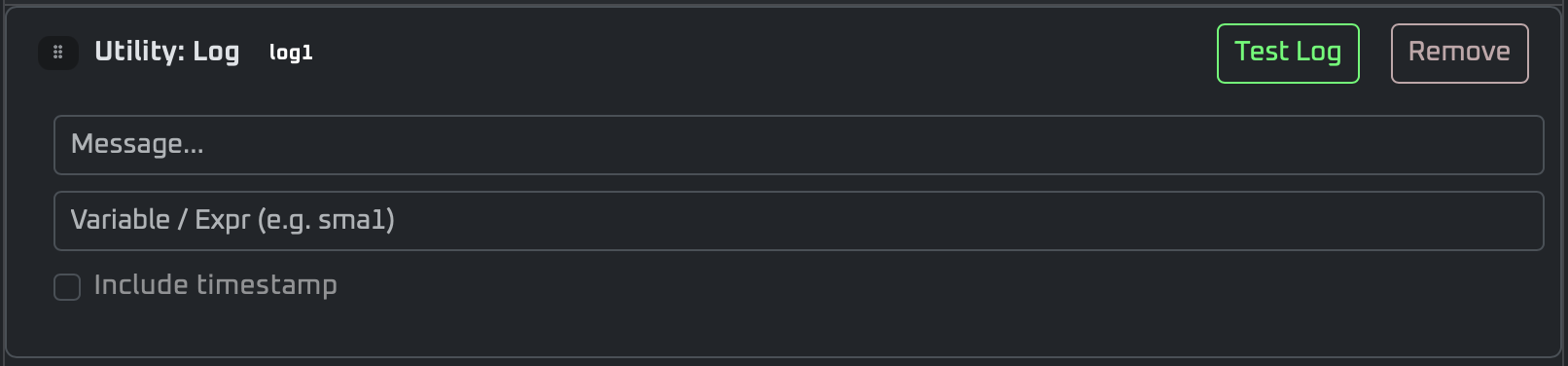

  • Log — print a message/variable to console.
  • File Output (CSV) — queue rows for Export CSV downloads.

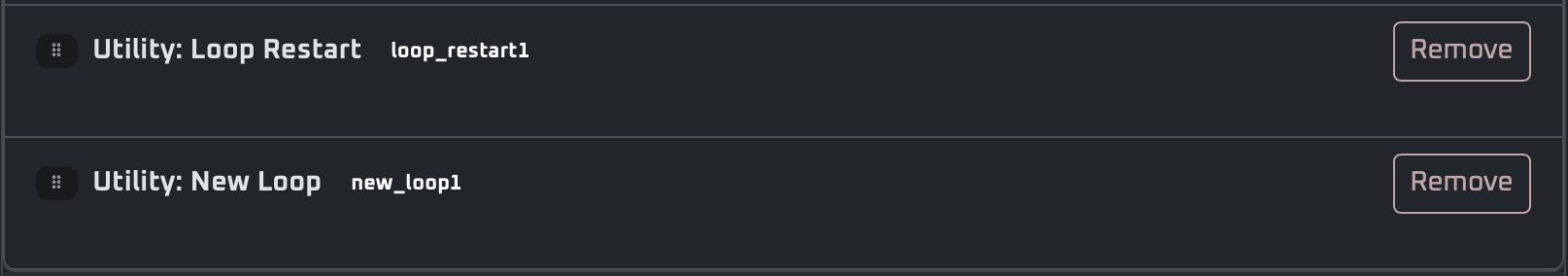

  • Loop Restart — restart the loop from the top when triggered.
  • New Loop — create a fresh loop iteration without restarting the current one.

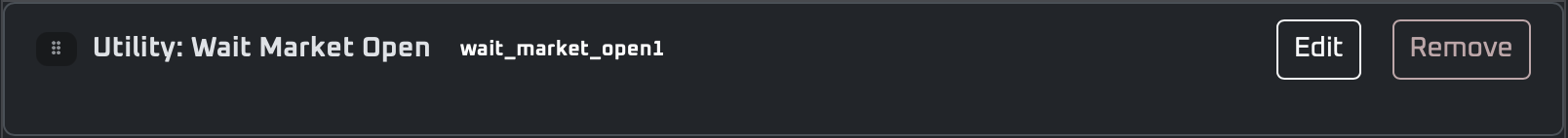

  • Wait Market Open — pauses until Alpaca reports market open.
Utility log Utility loop controls Utility wait market open
Tips
  • Flow: "Utility: Wait Market Open" if market is closed → "Data: Ticker" to define symbol and timeframe → Indicators → "Utility: Log" or "File Output (CSV)" to monitor values → Conditions → Actions (use Wait for Fill checkbox when needed) before moving onto the next action.
  • Add Wait Market Open and enable Wait for Fill on actions to avoid stale or after-hours runs.
  • Start simple (one condition) and layer AND/OR logic later.
  • Switch to Code Builder for advanced customization.

Algorithm: Accessories

Drop-Down Menu
  • Paper / Live — Choose which Alpaca account mode to target for this run.
  • Builder — Pick Block Builder or Code Builder (code view auto-syncs from your blocks).
  • File name — Give the script a clear name before saving/trading.
Algorithm dropdowns

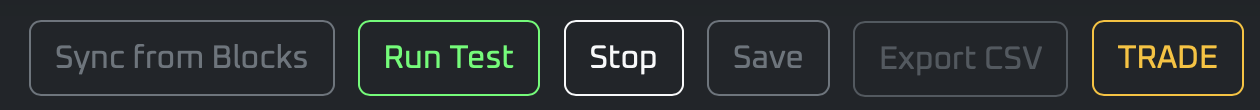

Buttons
  • Sync from Blocks — Overwrite Code Builder with the current Block Builder canvas; lights up when your code has diverged.
  • Run Test — Backtest blocks or your edited code (no orders placed); shows logs/stats and inferred trades.
  • Risk Analysis — Open from the Run Test dropdown to run Monte Carlo risk analysis.
  • Stop — Request a stop for an active test or trade session.
  • Save — Persist the current script (blocks or code) to your workspace.
  • Export CSV — Export rows produced by the File Output utility as a CSV.
  • TRADE — Launch live/paper execution using the current builder selection and mode.
Algorithm buttons

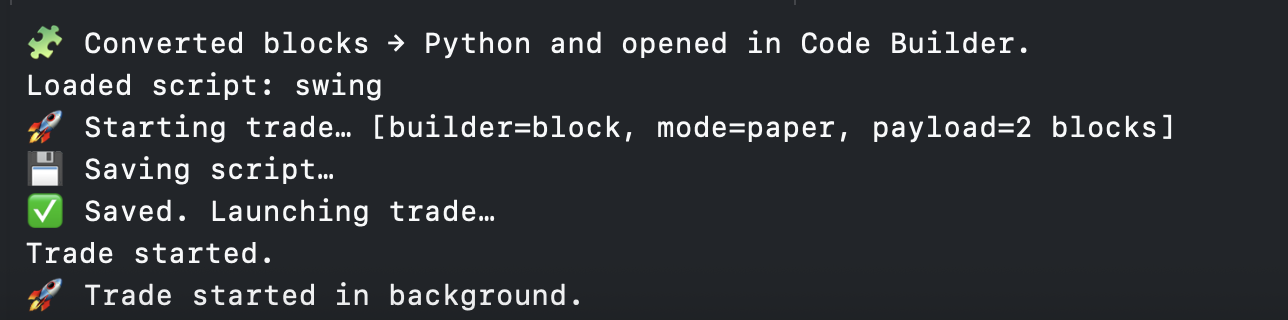

Console
  • Console window — Live stream of status, logs, and errors (useful for fills, timeouts, and debugging).
Algorithm console
